FSAE Polyurethane Foam Seat Bolster Design and Manufacturing

 As a first-year member of Cal Poly Racing, I was tasked with designing cheap, lightweight, and easily manufacturable seats for both the combustion and electric formula vehicles. After discussing desires with drivers and exploring potential options, I decided to make polyurethane foam side bolsters to secure drivers.

A set of finished bolsters custom fit to one of our drivers

No seat had been used the previous year, and drivers expressed that the main concern they wanted the seat to resolve was excess horizontal movement since the harness already restricted them from lurching forward. Furthermore, they were not concerned with cushioning along their backside as they preferred to sit as low into the vehicle as possible.

Based on these conversations, I decided it would be more effective to create bolsters that hugged the side of the drivers and filled the gap between them and the chassis, rather than create a full seat that would lift them up and require much longer manufacturing. The bolsters could be made of polyurethane boat foam and poured while drivers sat in the car to create a snug fit. The low cost and time commitment this process required allowed me to make a custom set of bolsters for each of our 5 drivers to get an ideal fit.

I placed two large plastic bags on each side of the cockpit and had the driver sit inside. Next, the foam was poured into each bag and allowed to expand around the driver for ~10 minutes until mostly hardened. After 24 hours of setting, the bolsters were removed from the bags, and excess material was trimmed with the remaining bolster coated in Flex Seal. Finally, after drying, Velcro was added to hold them in place in the chassis, and they were tested in the car.
~20 oz of liquid foam per bolster prior to pouring and mixing

One of our drivers sitting in the car as the foam was poured

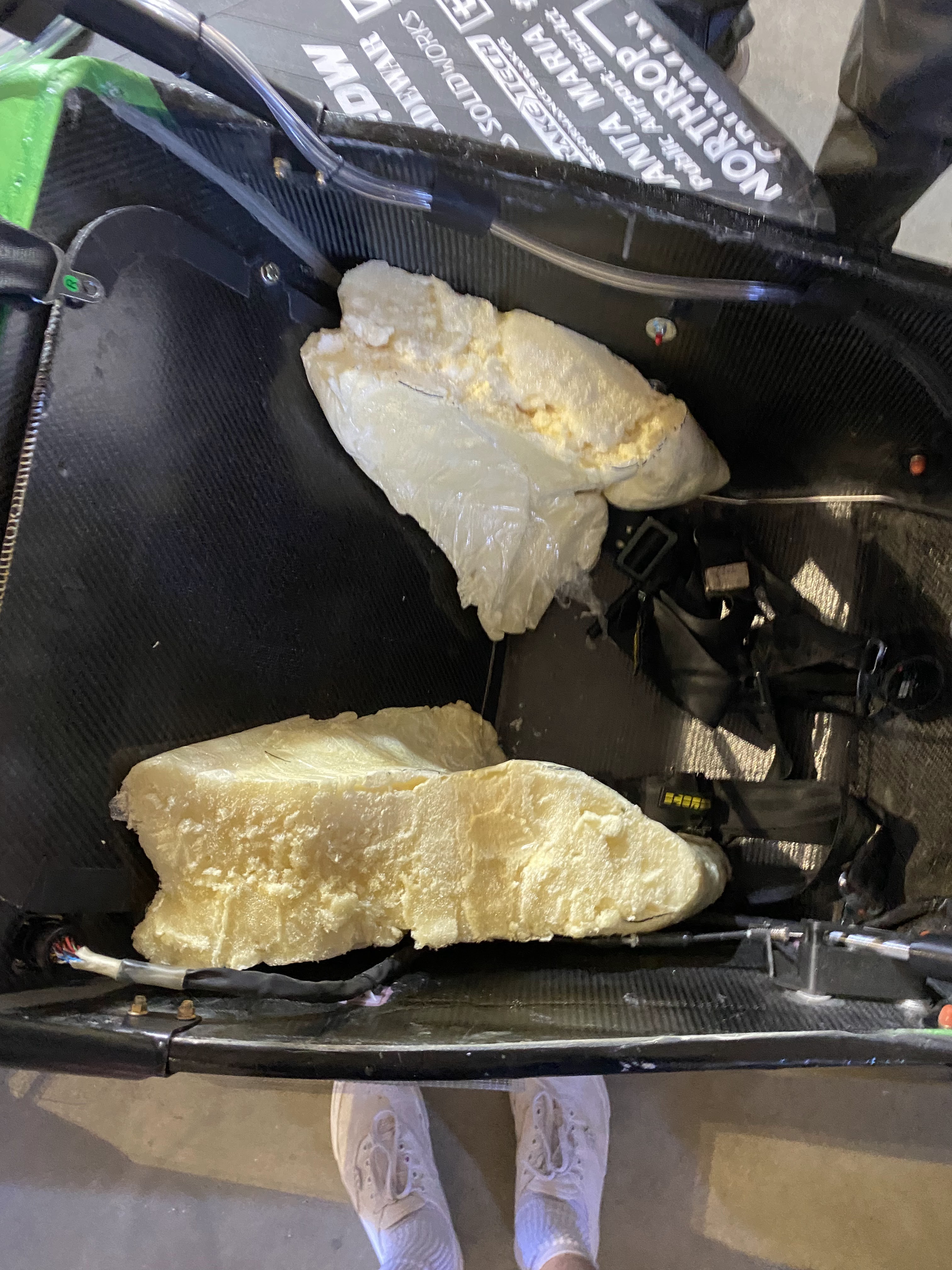

Expanded foam molding around the driver's torso

Hardened bolsters before and after trimming and Flex Seal coating. Notches cut out to avoid making contact with the harness.

These seats were a simple yet effective solution to driver security while driving.
